Product Detail

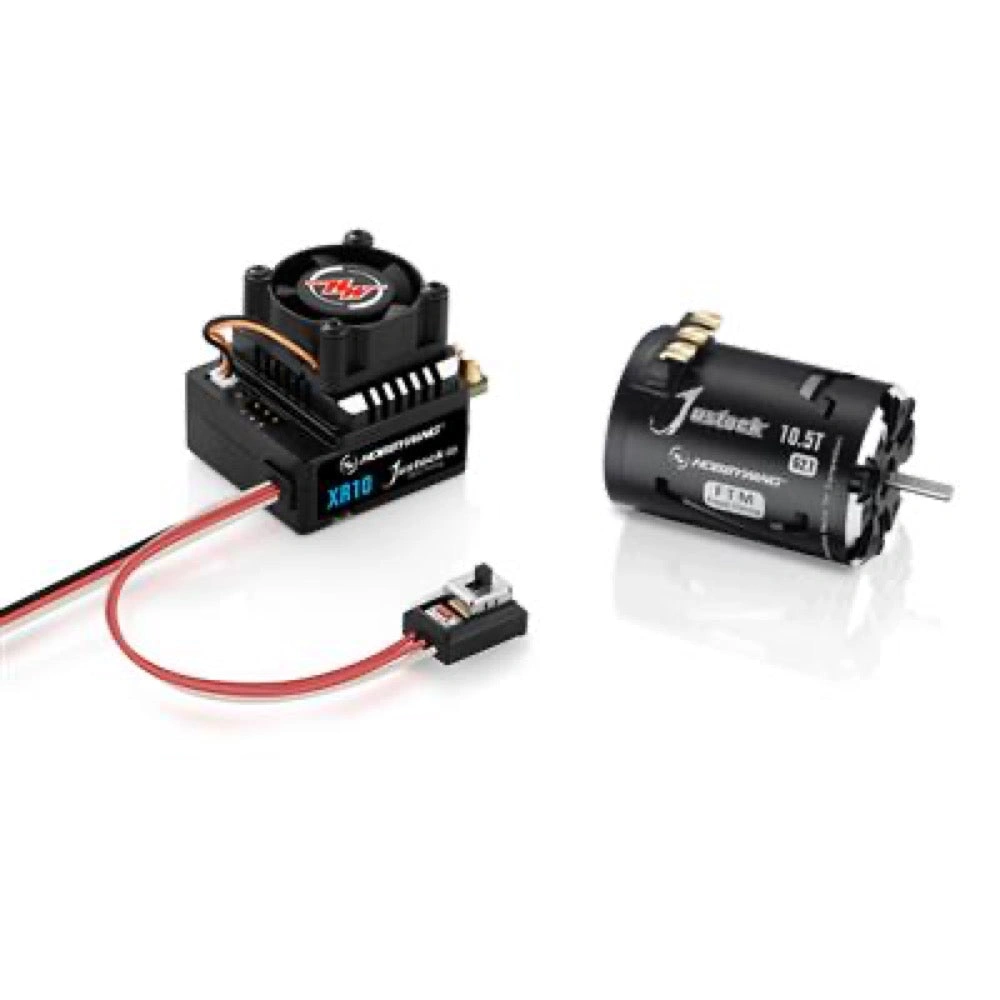

The Hobbywing XR10 Justock G3SS Sensored Brushless ESC/SD G2.1 Motor Combo has been designed with fixed, 0°, timing for spec class racing. The included SD G2.1 motor is an ideal stock motor for both 1/10 and 1/12 on and off-road racing. These two components paired together make for an ideal choice for beginners and experts alike.

Note: This product photo may not fully depict the described item. For comprehensive details on the listed product, please refer to the specifications provided.

Features

ESC

• Built-in polarity protection. The XR10 Justock has integrated MOSFET's that if the battery terminals are connected in reverse, the MOSFET will be reverse-biased and will not allow current to flow through the system

• Programmable via OTA Wireless module or 3in1 program box

• Built-in capacitor module eliminates the need for external capacitors and unwanted space

• RPM speed limit function supports up to 6 different speed, RPM, selections to meet the needs and demands of various competitions in the world (Set through OTA module or 3in1 box)

• Internal ESC timing has been set to 0 degrees and cannot be adjusted for stock racing

• Built-in BEC can support a maximum output current of up to 8A. Output voltage can be set between 6V or 7.4V

• Calibration or performing a factory-reset can be achieved by using this SET button.
• Simple and easy to use

• Supports both CCW (counterclockwise) and CW (clockwise) motor directions

• Protection functions include: reverse polarity, battery voltage, ESC temperature, motor temperature, signal lost and locked rotor protection

• ESC includes the Freewheeling setting allowing for lower ESC temps enhancing drivability through corners

• Built-in data logging for post-run reports

Motor

• Use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability

• Built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand

• Silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor

• Detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency

• This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice

• The motor design is in compliance with IFMAR, and ROAR specifications

Specifications

ESC

• Continuous Current: 60A

• Burst Current: 380A

• Battery: 2S Lipo (Only 2S)

• Built-in BEC: 6V/7.4V @ 4A(Switch-mode)

• ESC programming: Independent programming port

• Motor Supported: Sensor and sensorless brushless motor

• Motor Limit: 10.5T, or greater,3650 Motor

• Application: 1/10, 1/12 On-road and Off-road

• Cooling Fan: Powered by BEC

• Size: 40.9x33.9x32.1mm (LxWxH)

• Weight: 75.4g (Including weight of wire)

• ROAR Approval: Yes

Motor

• Scale: 1/10, 1/12

• Brushless: Yes

• Sensored: Yes

• Pole Count: 2

• KV Rating: 3200kV

• LiPo Cells: 2-3S

• No-Load Current(A): 4A

• Outer Diameter: 35.9mm (1.413')

• Length: 52.5mm (2.067')

• Shaft Diameter: 3.17mm (0.125')

• Weight: 175g (6.17oz)

• Timing: Fixed

Includes

• (1) Justock G3SS ESC

• (1) Justock 13.5T G2.1 brushless motor

• (1) 5V cooling fan

• (1) Sensor cable
