The combination of the highly-detailed body and 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler.
In 2019 the world's most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scale realism in the hobby-grade RC category. The continuous pursuit of performance and evolution has led to the creation of a completely-new ‘MINI-Z 4x4’ design that delivers an all-new driving experience for RC fans of all stripes, with superior overall design, driving performance and high-quality injection-molded scale body construction. A significant feature of the MINI-Z 4x4 series is the greater emphasis of body detail and quality of finish that even surpasses existing benchmarks set by the MINI-Z. The body is also molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4x4, specially geared to run well in the low to medium speed ranges common in crawling. Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4x4 needs is 8 x AAA alkaline batteries (sold separately). Enjoy driving under any conditions, from normal driving to rock crawling while appreciating the stunning visual appearance. The Kyosho Mini-Z 4x4 is the only mini crawler that delivers a full range of crawling performance in a smaller package.

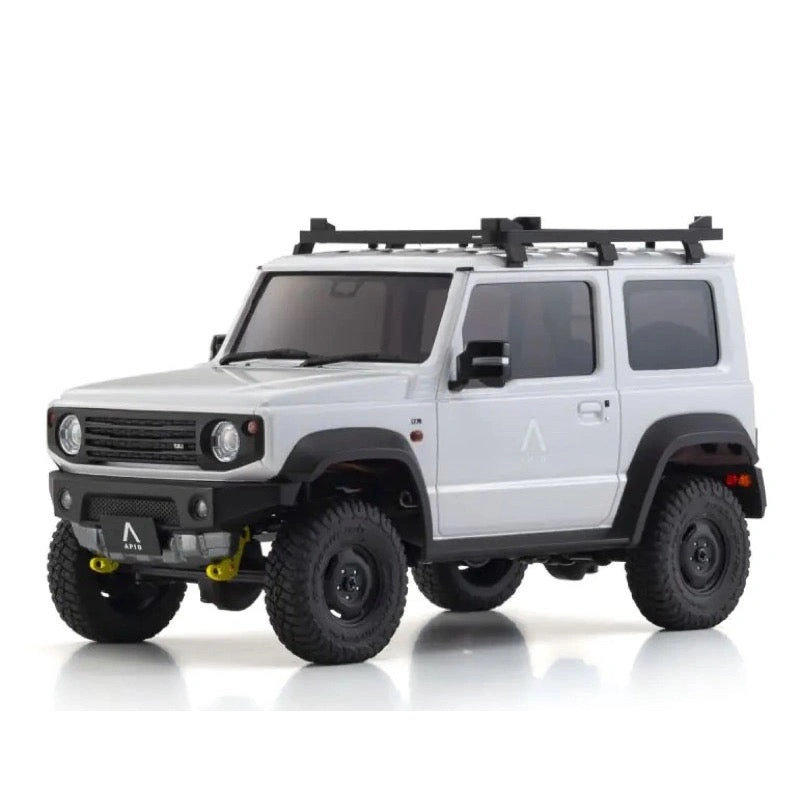

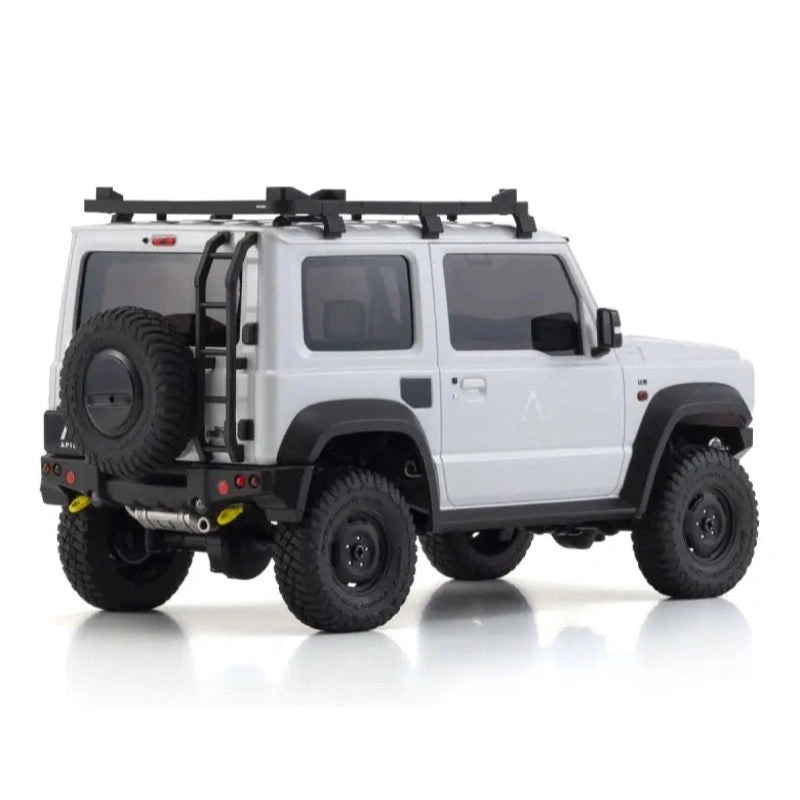

With more than 50 years as an aftermarket parts creator for the Suzuki Jimny, APIO’s unique tuning parts have a cult-following for their enhanced performance and unique sense of style. In collaboration with APIO, Kyosho has recreated the special front grille / front bumper / rear bumper / roof rack / rear ladder / rear license plate / Yoshimura muffler / wheels etc., in exceptional detail.
The same ladder frame and multi-link rigid-axle suspension commonly used in popular 1:10-scale off-road models, is condensed into Mini-Z size for the most articulation and performance available in any mini RC truck.
The Mini-Z 4x4 incorporates a ladder frame design with steel vertical plates, in combination with various molded parts, to deliver the ultimate balance of of rigidity and flex for superior performance and durability.
Solid front and rear axles feature links with steel rods and captured rod ends. Ring and pinion gears, in addition to other gears and components, feature metal construction to withstand the heavy loads under the toughest driving conditions.
The front axle features ideal Ackermann geometry. Combined with the advanced design of the axle housing and the other steering components, This model features the tightest turning radius in Mini-Z history. It means the Mini-Z 4x4 has exceptional handling capability for anything ranging from casual driving to hard-core crawling.
The Mini-Z 4x4 features a specially-designed high-torque motor that is unique in the Mini-Z World. It's optimized for maximum torque, and it develops more power at lower speeds.
The best drive efficiency is accomplished with the included set of 18 ball bearings, factory installed to ensure the smoothest most efficient operation possible, right out of the box.
Features
- Adopts full-fledged solid axle links similar to the 1/10 scale models, ensuring the driving performance and wheel travel required for crawler models.
- Equipped with a specially tuned high-torque 130 motor. Additionally, the main gear unit features a slipper clutch that protects the drive system by releasing torque when under heavy load.
- Features a high-torque servo specifically designed for crawler models, capable of supporting authentic crawling performance. The steering link optimization achieves the largest steering angle in Mini-Z history.
- Full bearing specification with a total of 18 ball bearings. Metal gears, known for their durability, are used in parts that bear heavy loads.
- The 'KT-531P' transmitter uses the FHSS 2.4GHz system and features a sponge on the steering wheel to enhance operability.
- Comes as a fully assembled, ready-to-run model, requiring only the insertion of batteries to begin operation.
- An optional light set (MZW429R) can be installed on the top of the circuit board.
- The lights respond to throttle operation, and the headlight's lighting interval can be adjusted freely—from steady lighting to blinking—via the transmitter's trim.
- Supports the separately sold gyro unit, and like the RWD/AWD series, manual adjustments can be made via the volume control.
- Equipped with popular BS Goodrich tires.
- Tires and wheels that are specific to each model are a major focus of the Mini-Z 4x4.
- Metal gears are used in areas subject to high loads to ensure durability.
Contents
- Complete chassis with built-in electronics.
- Factory-painted body complete with many fine details
- KT-531P 2.4GHz transmitter
- Pinion gear set（10T、12T、14T、16T、18T、20T）
- 3 types of pinion gear spacers
Requires
- 4 x AAA batteries for the transmitter
- 4 x AAA batteries for chassis （Alkaline or NiMH）
